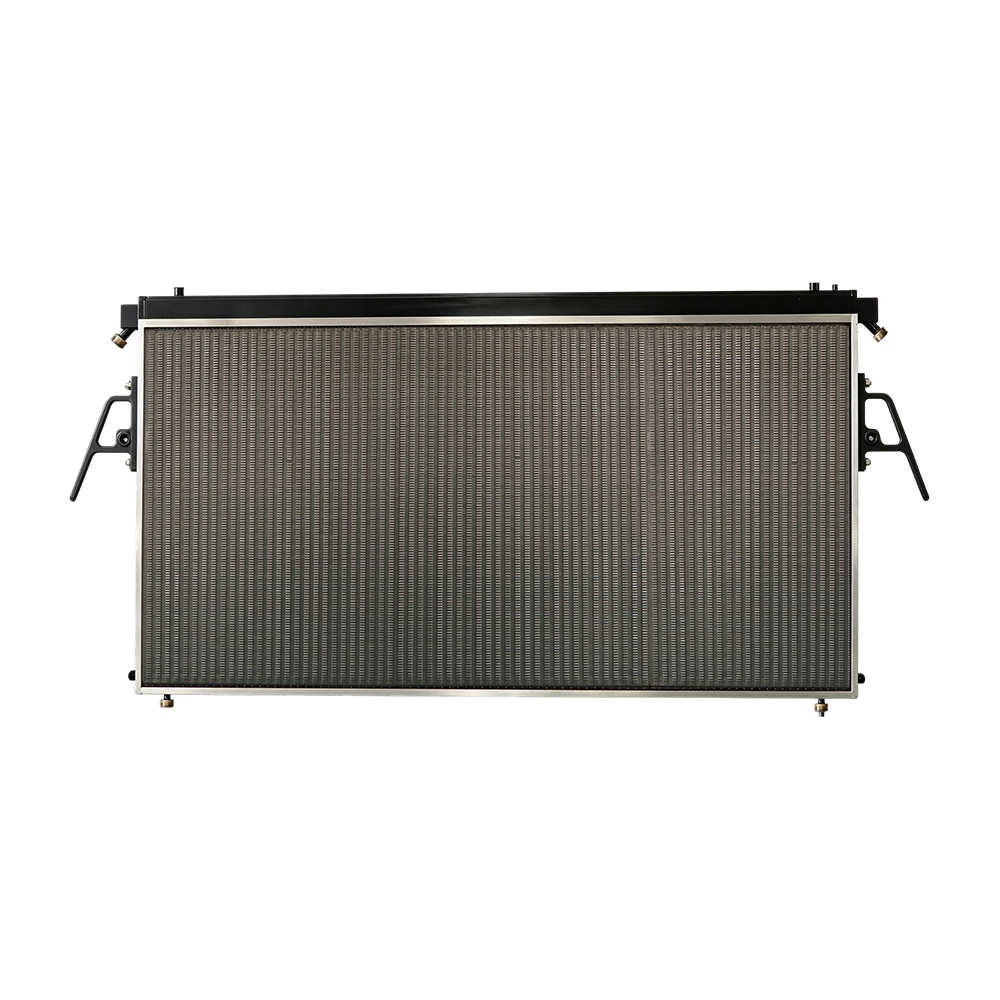

JHM-1 Bipolar Natural Circulation Zero-gap Hydraulic Electrolyzer

STRUCTURAL ADVANTAGE

  • Conductive design of the anode and cathode element bodies
  • The anode sealing surface is made of titanium-palladium alloy to prevent corrosion of the sealing surface. The large plate has an L-shaped support structure inside, and the frame is assembled with strip-shaped steel, which is not easy to deform when squeezed.
  • Extending the length of the liquid outlet hose and increasing the inner diameter of the outlet pipe connection can effectively reduce the leakage current.
  • The gas-liquid channel has been enlarged, and a secondary defoaming system has been added inside. The electrolyzer does not surge under high electrical density operation. Add titanium supports to ensure the rigidity of the sealing surface and prevent the gasket from running away.
Project Parameters
Cell specification 2402mm × 1285mm × 62mm
Effective area 2.7 m²
Operating current 12.15~16.2 kA
DC power consumption ≤1980 kWh/t 100%NaOH (at operating current density of 5.5kA/m²)
Corrected Cell Voltage ≤2.88V (at current density of 5.5kA/m²)
